Suggestions for labelling of panels and layouts

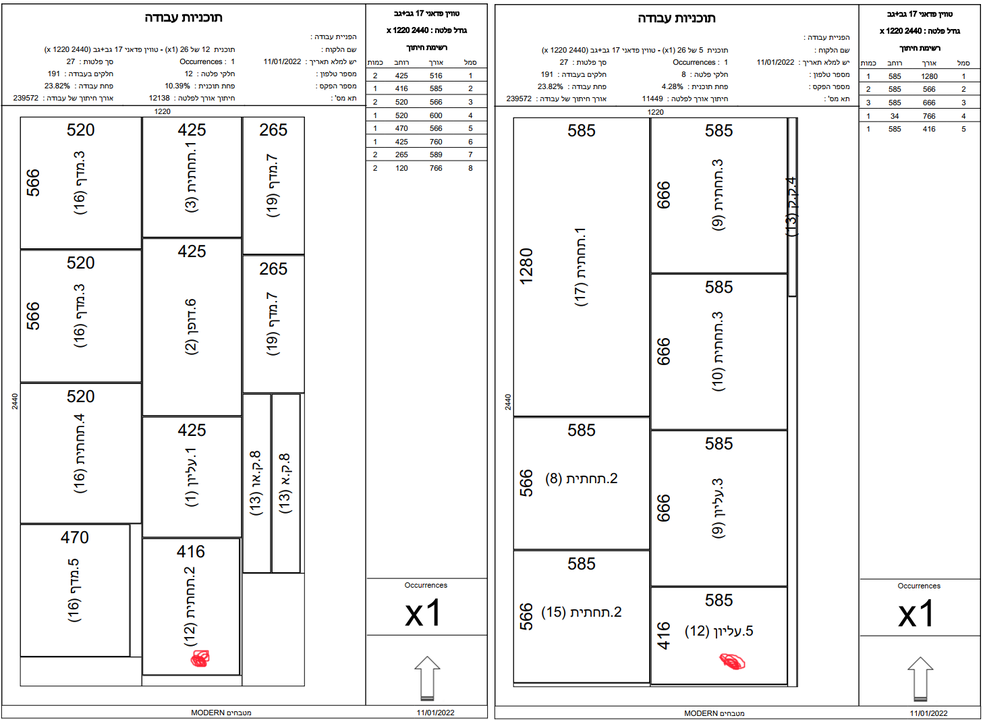

Dimension inconsistency:
- When two panels are the same size but oriented differently, one shows both dimensions on the print layout while the other doesn’t.

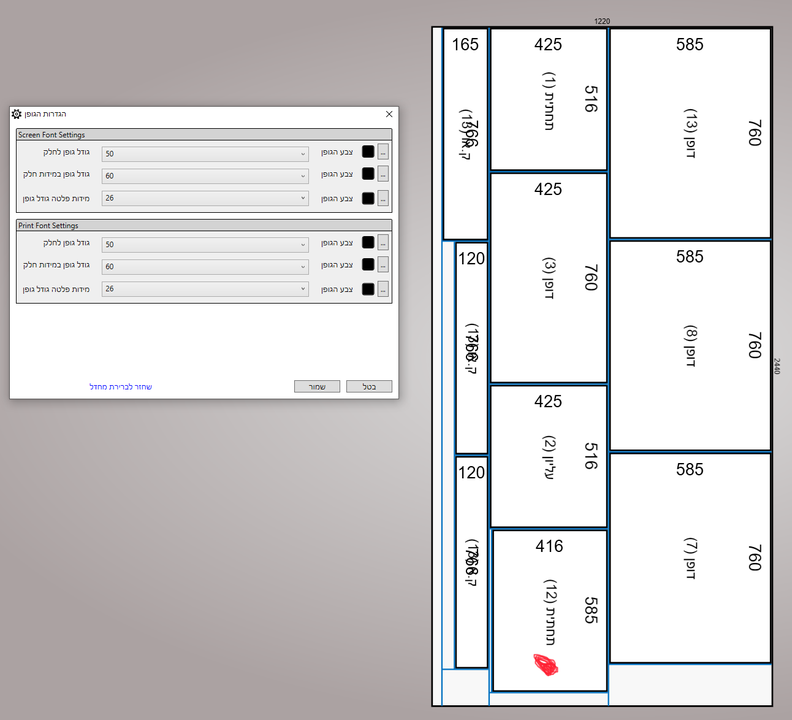

Missing dimensions:
- Some pieces miss their length dimension on the printed layout, even though it appears correctly on-screen.
See attached PDF for more suggestions.
